LED Bulb Automated Glue Dispenser 150W Glue Dispensing Machines Round

Certification : CE

Packaging Details : PLYWOOD CASE

Supply Ability : 50PCS/MONTH

Price : CONTACT US

Brand Name : GDS

Model Number : JD-10

Place of Origin : CHINA

MOQ : 1PIECE

Payment Terms : T/T

Delivery Time : 7 WORKING DAYS

Name : Automated Glue Dispenser

Application : downlight

Function : dispensing glue

EXW report : test video available

After-sales Service : On-line or on-site

Warranty : 1 year

Contact Now

LED round panel light automatic glue dispensing machine glue dispenser for panel light downlight

LED Bulb Automated Glue Dispenser 150W Glue Dispensing Machines Round

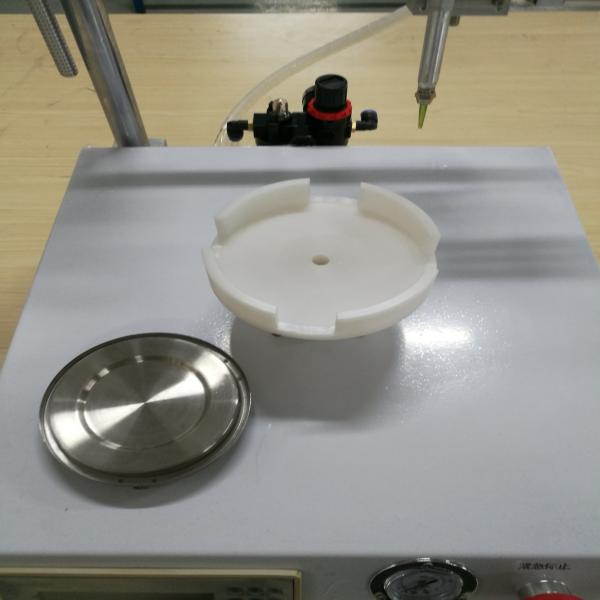

round panel light or down light gluing should be fast and in good consistency. GDS round glue dispensing machine can replace manual operation to get better gluing performance. We can design the fixture based on the dimension of the product . Then the product can be held on the fixture. The motor drives the fixture to rotate for designed gluing track.

machine features:

Specially designed for large size round products;

Gluing track can be set as full circle, single point, segmented arc etc.;

Equipped unique suck-back valve to guarantee fast glue flow and no drops or leakage;

It is easy to learn and operate with touch screen and buttons, for different glue with different settings ensure the best performance;

Technical Parameters

Model	JD-10
MCU	Industrial PLC
Programming	Text Demonstration Programmer
Drive Mode	Precise Stepping Motor
Max Dispensing Diameter	400mm
Motor Speed	0 ~300RPM
Positioning Accuracy	±0.1mm
Z-axis Adjust Range	250mm
Z-axis Working Travel	50mm
Dimension(LWH)	420mm532mm532mm
Weight	28Kg
Working Power	AC220V/50~60Hz/150W
Working Air Pressure	0.4~ 0.6Mpa(no condensation)
Working Temperature and Humidity	Temperature: 0~40℃,Humidity: 20~90%

Suitable Glue:300ml/2600ml single-component package for silicone, thermal-conductive silicone grease, UV glue, AB glue etc.

Applications:

Big size round lights, such as LED round panel light, outdoor wall light, yard lamp, lawn lamp, PAR light, mine light etc.
